M5Stack GPS SMA Unit GNSS AT6688 Navigation Module External Active Antenna GPS/QZSS/BD2/BD3/GAL/GLO for IoT location Devices

$42.50 USD

~~$63.75 USD~~ $42.50 USD

Sale Sold out

Default Default-Default

Quantity

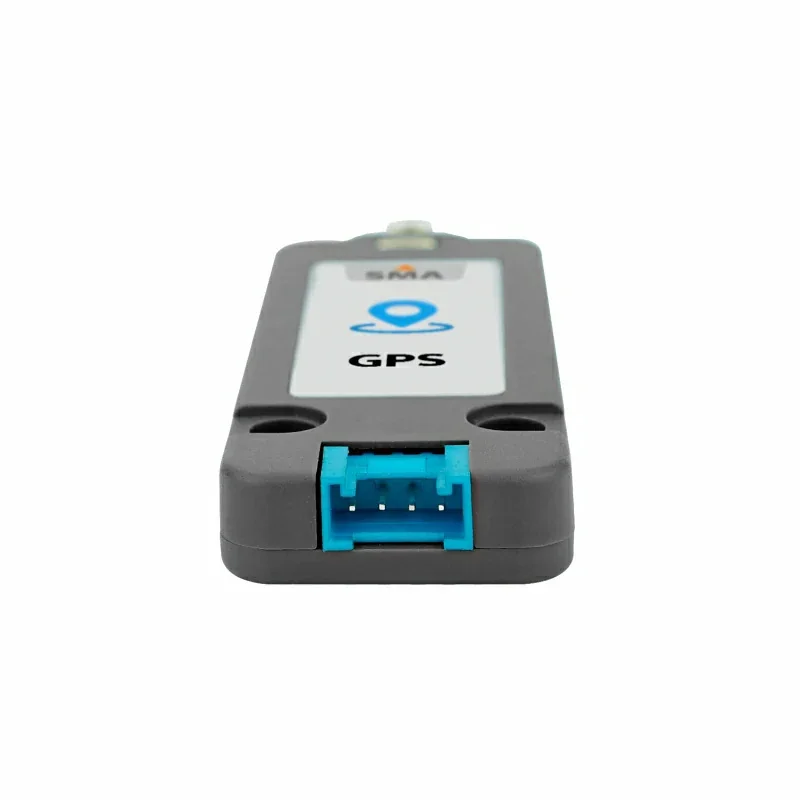

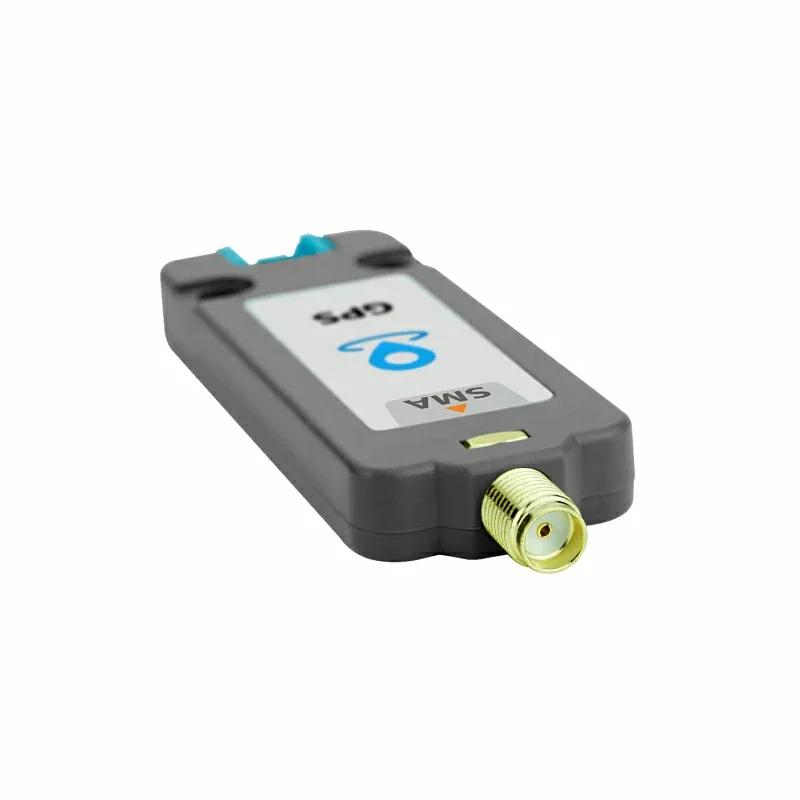

M5Stack GPS SMA Unit GNSS

Product Features

Supports multiple satellite navigation systems (GPS/QZSS/BD2/BD3/GAL/GLO)
Multi-frequency and multi-system reception
Multi-channel support
External active antenna
2x LEGO-compatible holes
Programmable platforms: Arduino, UIFlow, ESP-IDF, etc.

Applications

Vehicle positioning and navigation
Wearable devices
IoT location devices
Drones
Portable devices
Public transportation announcement systems

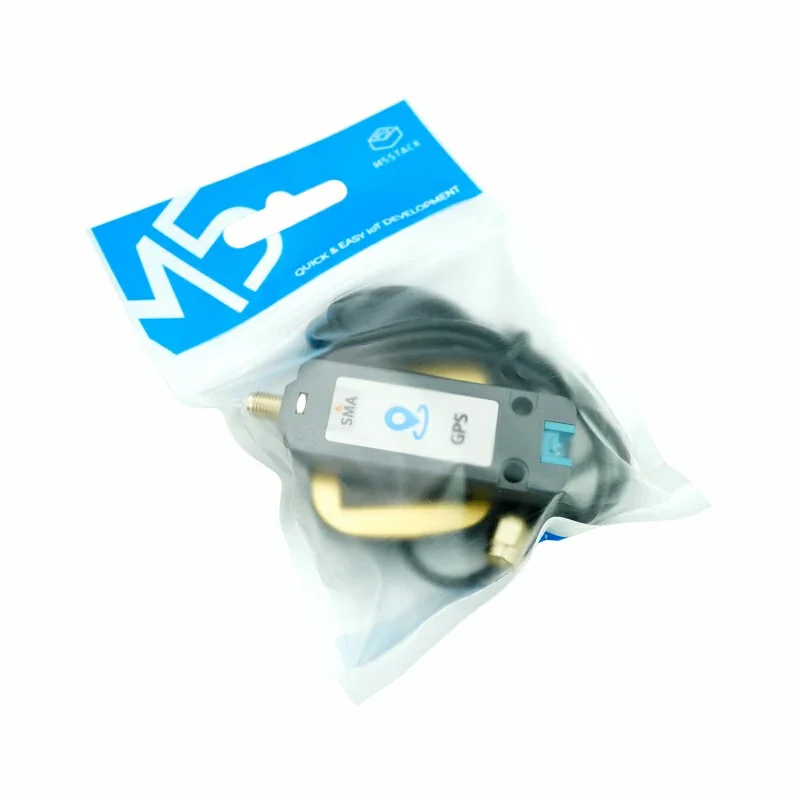

Package Includes

1x Unit-GPS SMA

1x HY2.0-4P cable (20CM)

1x External active antenna

Specification

Specification Details

SoC: AT6668

Supported Systems: GPS/QZSS/BD2/BD3/GAL/GLO

Frequencies: BDS: B1I+B1C; GPS/QZSS/SBAS: L1; GALILEO: E1; GLONASS: R1

Channels : 50

Communication: UART (default: 115200bps@8N1)

Positioning Accuracy: <1.5m (CEP50)

Positioning Update: Maximum 10Hz

Protocol: NMEA0183 4.1

Sensitivity: Tracking: -162dBm, Acquisition: -160dBm, Cold start: -148dBm

Startup Time: Cold start: 23 seconds, Hot start: 1 second

Antenna: SMA active external antenna (inner thread, inner pin), Gain: 30DBI Frequency: 1555MHz~1580MHz Length: 1m Size: 38*36*13mm

Power Consumption: Standby: DC5V/31.64mA; Working: DC5V/40.90mA

Product Dimensions: 71.4*24*8mm

Packaging Dimensions: 136*92*13mm

Product Weight: 11.2g

Packaging Weight: 59.6g

Product Comparison

Product details

Schematics

Module Size

PinMap

Product Description

Unit-GPS SMA is a GNSS global positioning and navigation unit, integrating the high-performance ATGM336H navigation module from Microelectronics, based on the AT6668 chip design. It is equipped with an external active antenna, offering more precise and reliable satellite positioning services. Compared to previous models, the AT6668 supports multi-frequency and multi-mode GNSS signal reception, enabling compatibility with multiple satellite navigation systems (including GPS, BD2, BD3, GLONASS, GALILEO, and QZSS). It supports combined multi-system positioning or single-system independent positioning, offering enhanced interference resistance and higher positioning accuracy. This module is well-suited for high-accuracy positioning applications such as vehicle navigation, IoT location devices, and more, even in weak signal areas.
