LoRa+GNSS+Wi-Fi+BT Wireless Tracker Development Kit ESP32-S3 WiFi BT SX1262 LoRa 915MHz UC6580 GPS Receiver for Meshtastic IoT

Note:

Without battery;

Include SH1.25 x 2 battery connector.

Description:

Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Blue-tooth, LoRa.

Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.

Features:

ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Blue-tooth, GNSS.

Low power design of dual-frequency multi-system based on 22nm technology.

Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.

Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

Onboard Wi-Fi, Blue-tooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.

Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.

Support the A rduino development environment.

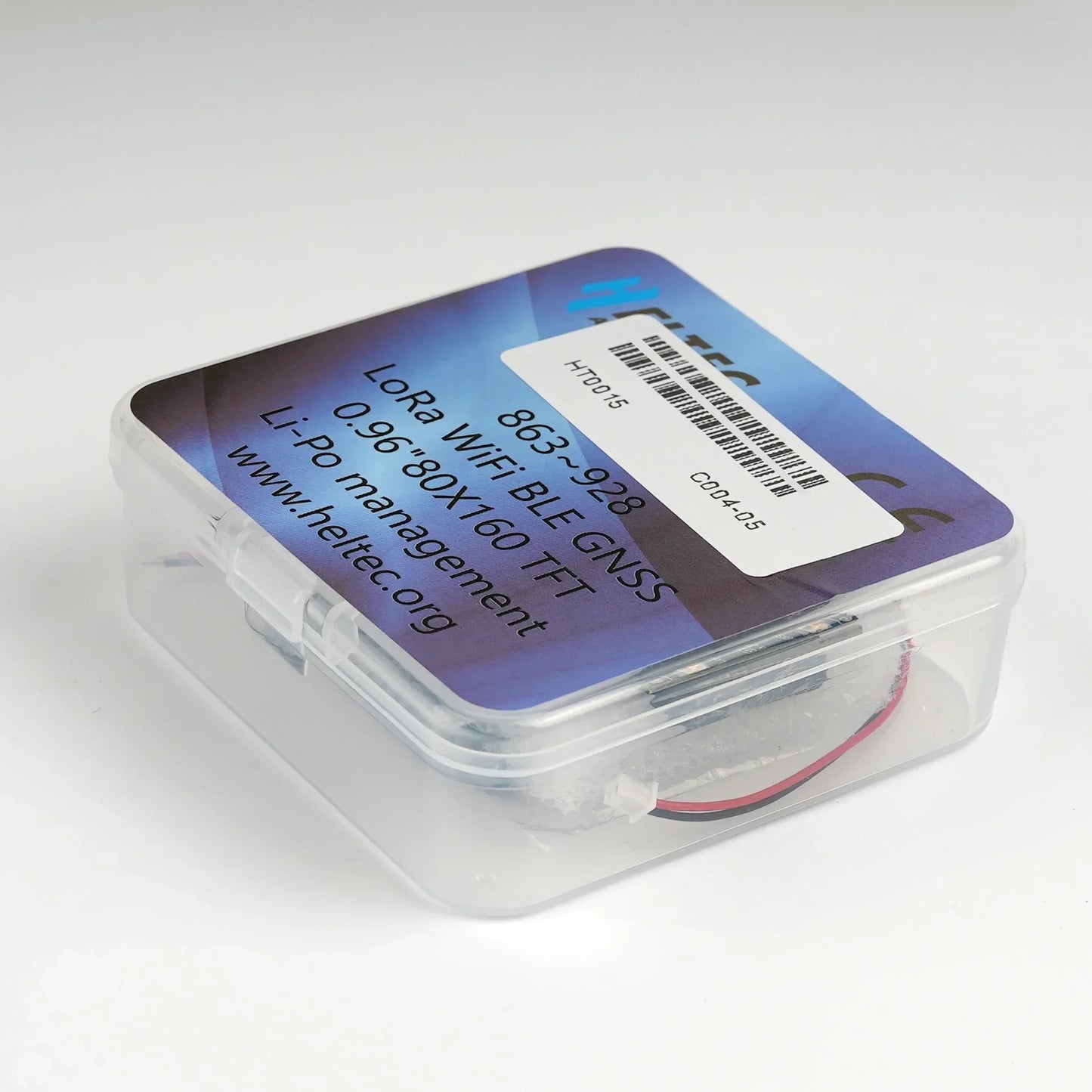

Pavkage includes:
1 set 863-928MHZ Wi-Fi + BT + LoRa + GNSS development kit

or

1 set 433-510MHZ Wi-Fi + BT + LoRa + GNSS development kit

Document:

Heltec ESP (ESP32 & ESP8266) framework (Already included Heltec ESP32 LoRaWAN library)

User manual
