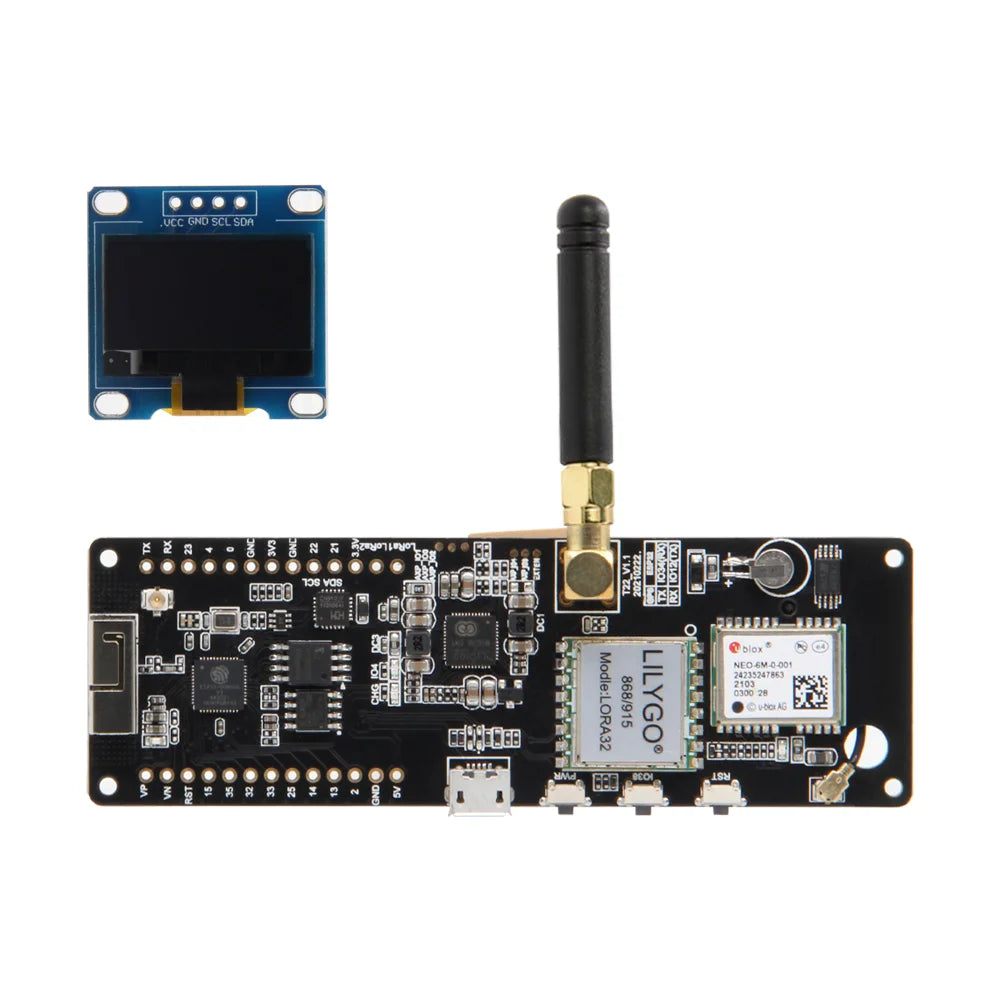

LILYGO® TTGO Meshtastic T-Beam V1.2 ESP32 LoRa 915MHz 433MHz 868MHz 923MHz WiFi BLE GPS With 0.96 inch OLED 18650 Battery Holder
LILYGO® TTGO Meshtastic T-Beam V1.2 ESP32 LoRa 915MHz 433MHz 868MHz 923MHz WiFi BLE GPS With 0.96 inch OLED 18650 Battery Holder
Regular price
$65.24 USD
Regular price
$97.86 USD
Sale price
$65.24 USD
Unit price
per
Couldn't load pickup availability
|
T-Beam V1. Meshtastic |
|||
MCU |
ESP32 |
Flash |
4MB |
|
Serial Chip |
CH9102 |
PMU |
AXP2101 |
|
Wireless protocol |
Wi-Fi+Bluetooth 4.2 |
|||
Onboard functions |
3 Buttons(Power+IO38+Reset) |
|||
Power Supply Mode |
Support USB |
|||
18650 Battery | ||||
NEO-6M GPS Modules |
Support GPS Protocol |
|||
Onboard RTC Crystal | ||||
Support Interrupt / Wakeup | ||||
Long Range Low Power LoRa Transceiver | ||||
High sensitivity |
-148 dBm |
Transceive rate |
300 kbps |
|
Optional Version |
SX1278 / SX1276 |
|||
Frequency model comparison | ||||
Hardware |
SX1278 |
SX1276 |
||
Software |
Meshtastic433Mhz Version |
Meshtastic868/915/923 Mhz Version |
||
0.96 Inch OLED Parameters | ||||
Size |
0.96 inch |
Resolution |
128 * 64px |
|
Driver IC |
SSD1306 |
Color |
White |
|
More information |
|
What's in the box |
|
1 X T-Beam V1.1 CH9102 | |
|
1 X LoRa Antenna | |
|
1 X 0.96 inch 128X64 OLED | |
2 X 2.54mm Male Pin (1*13P) | |
Note: Solder version has welded OLED!!! |
