LILYGO® T-SAM21 ATSAMD21 MCU Module Development Board for Arduino DIY IOT device

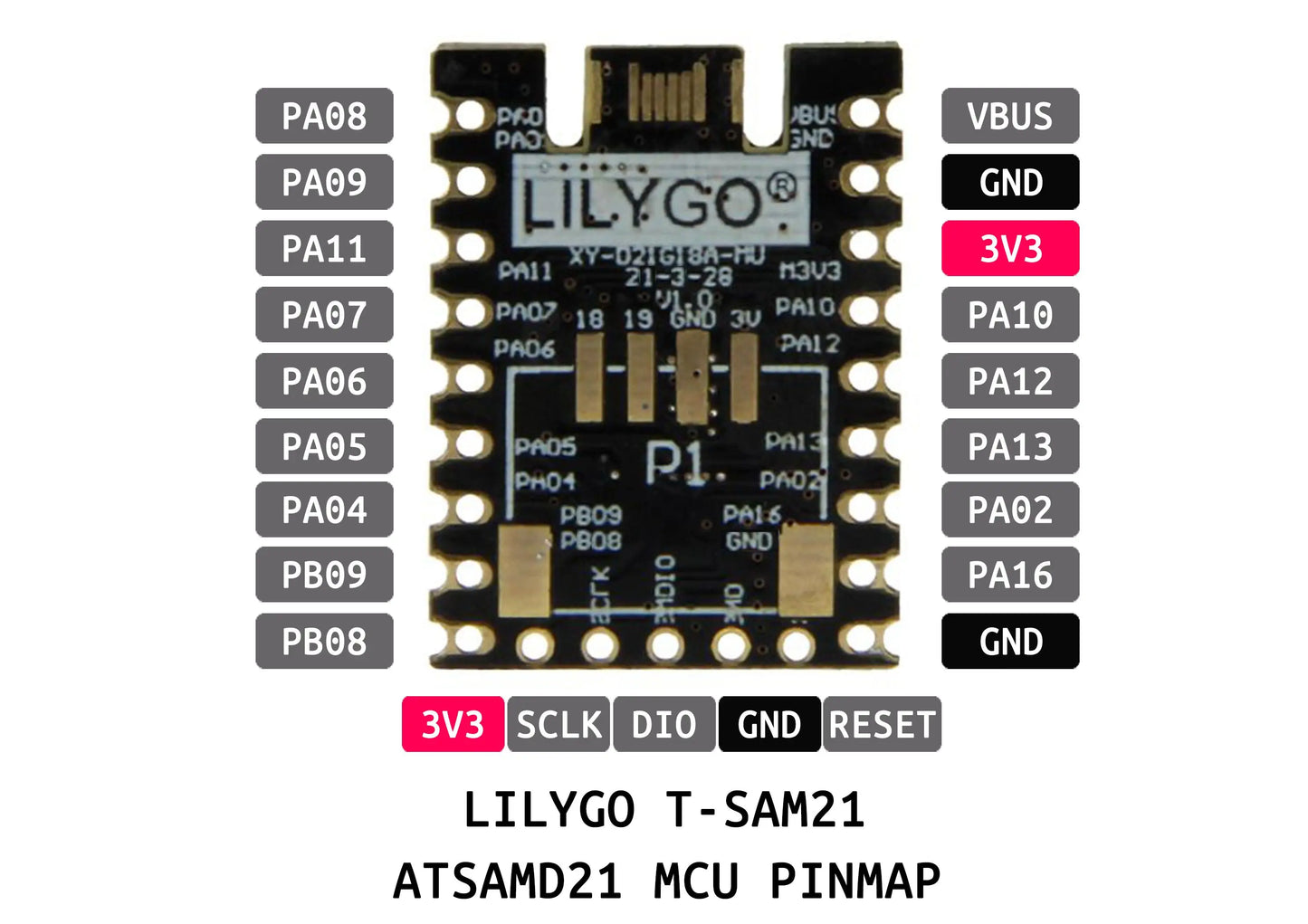

LILYGO® T-SAMD21

It is designed and manufactured based on Microchip ARM®Cortex®-M0+ flash memory microcontroller ATSAMD21G18A-MU,Around the concept of easy embedding and use, the product is a flat design .

The USB port is designed as an integrated type-c, and the half-hole design of common modules is reserved on both sides.

Eight 2.54 pitch holes are designed on both sides, which is convenient for DIY soldering header or header extension.

The distance between the pins on both sides is compatible with the bread pitch design, which is convenient for application to breadboard experiments.

Motherboard parameters

• -Microchip ATSAMD2G18A-MU

• -256KB of flash and 32KB of SRAM

• -Up to 48MHz operating frequency

• -Six serial communication modules (SERCOM) configurable as UART/USART, SPI or I2C, three 16-bit timer/counters, 32-bit Real-Time Clock and calendar, 20 PWM channels, one 14-channel -12-bit ADC, one 10-bit DAC

• -Full Speed USB Device and embedded Host

• -Support for up to 120 touch channels

• -USB input power 5V@1A


Develop Software

• -Arduino

Application Scenario

• -DIY

• -STEM Education

• -IOT device

T-SAMD21 Options

1 X T-SAMD21
