ESP32 LoRa V3 Kit Development Board 868MHz 915MHz SX1262 with 0.96 Inch OLED Display For Arduino IOT Meshtastic Devices

Geekstory 2 Sets 915MHz IPEX to SMA Antenna ESP32 LoRa V3 Development Board SX1262 0.96" OLED BT+WIFI Lora Kit for Arduino IOT Smart Home


Description:
WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.
It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.

Note:
Not include battery;

Features:
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
- Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.
- With good RF circuit design and low-power design.

U.FL IPEX to SMA Connector Antenna
Connector type: ipex
Band definition: 915MHz
Standing wave ratio: <= 1.5
Gain: 2dBi
Maximum power: 10W
Input impedance: 50Ω

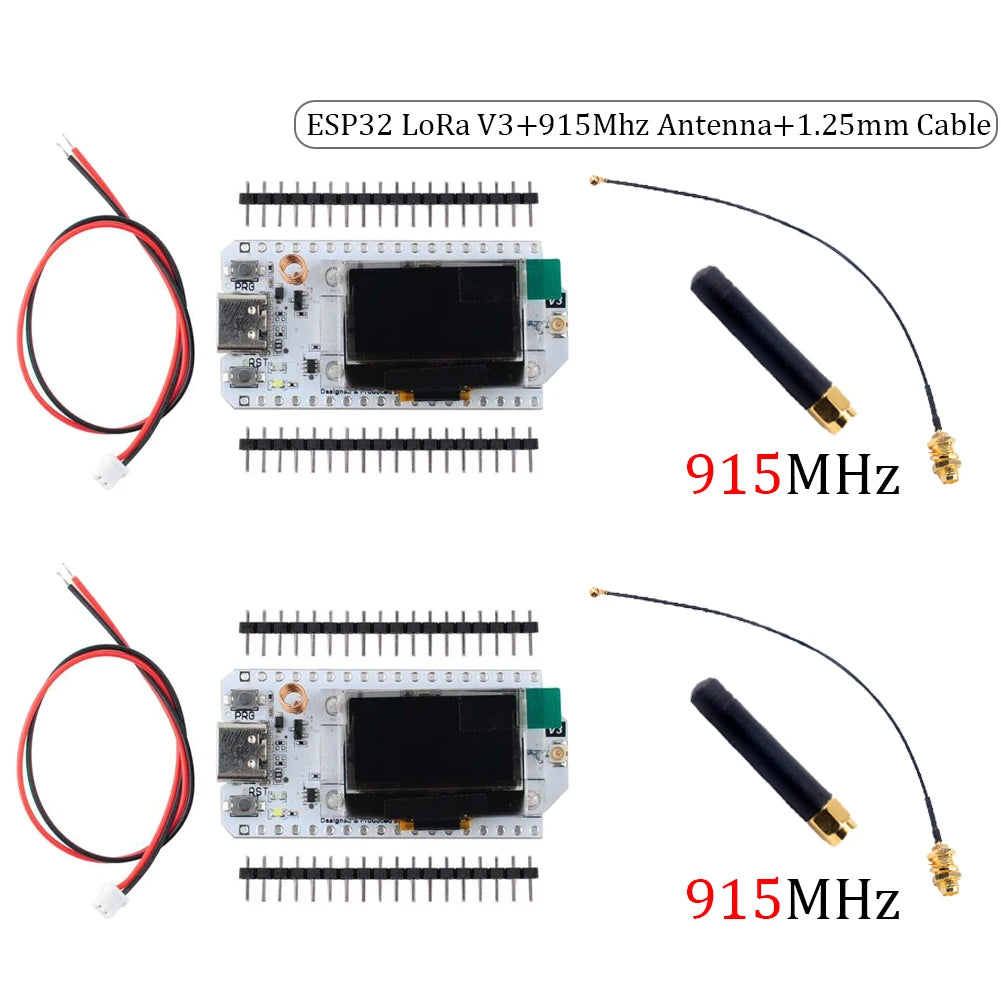

Package Includes:
Bundle 1: 1 x LoRa V3 + 1 x SH1.25-2 Cable + 1 x 868MHz Antenna
Bundle 2: 2 x LoRa V3 + 2 x SH1.25-2 Cable + 2 x 868MHz Antenna
Bundle 3: 1 x LoRa V3 + 1 x SH1.25-2 Cable + 1 x 915MHz Antenna
Bundle 4: 2 x LoRa V3 + 2 x SH1.25-2 Cable + 2 x 915MHz Antenna
